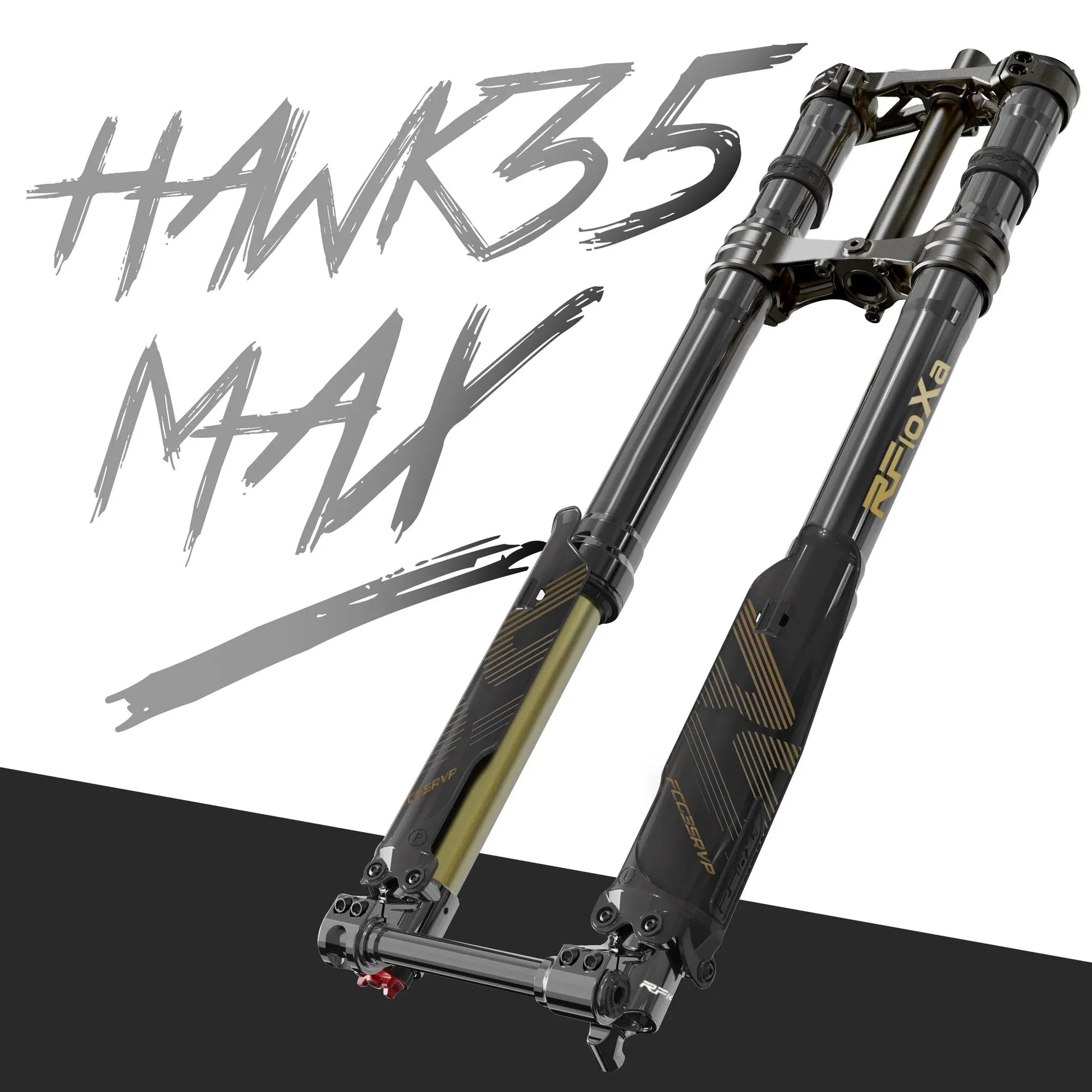

PRE-ORDER RFLOXA HAWK35 MAX BLACK FRONT FORK FOR E RIDE PRO 3.0/SR

Note: This fork is designed based on the E Ride Pro 3.0/SR specifications.

Normal drop crown color is black, if you need to change color pls make a note when you order.

① Max Stability and Width Expansion
The widened triple clamp set includes upper and lower clamps, a steering stem, a widened front axle, and screws—all designed to provide exceptional stability and support. The triple clamps and steering stem come in five color options—black, purple, blue, red, and gun gold—with matching finishes for a seamless look. Precision CNC-machined for durability and flawless engineering fit, this assembly meets the demands of high-performance riding.

② High-Performance Design
The Hawk35 Fork features an impressive 203-228mm travel range, specifically designed for downhill and off-road riding, delivering top-tier performance. With a 37mm stanchion diameter and a 99.5mm caliper mounting distance, it is compatible with 220mm disc brakes (upgrade options available), making it an ideal choice for electric dirt bikes.

③ Advanced Suspension Technology
This inverted fork utilizes an oil-spring damping system with an asymmetrical and independent structure for the left and right legs. It includes multi-stage adjustments for high-speed compression damping, low-speed compression damping, rebound damping, and spring preload, allowing precise tuning to match your riding style and terrain.

④ Robust Build Quality
The Hawk35 lower bracket is crafted from forged AL6061-T6 aluminum alloy, while the fork tubes are made of AL7075-T6 aluminum alloy, ensuring strength and durability. The 55CRSI spring steel wire guarantees elasticity and performance under pressure.

⑤ Customizable Adjustments
All adjustment features, including multi-stage high-speed compression, low-speed compression, rebound, and preload settings, are controlled via easy-to-use manual knobs. This allows quick and convenient tuning in various riding conditions, ensuring optimal performance and comfort.

⑥ Enhanced Bottom-Out Support
The fork features a unique hydraulic bottom-out design, providing strong support at the end of travel to enhance stability and minimize harsh impacts.

⑦ Reliable Damping Performance
The internal damping system includes dual compression valve plates, ensuring stable and reliable compression damping. The fork uses high-quality, low-friction, low freezing-point damping oil, maintaining consistent damping performance even in extreme conditions.

Weight for 203mm travel fork: (compatible with 19“/21” inches)

• 45lbs spring -  ≤100kg
• 60lbs spring - 100kg-130kg
• 45-60lbs progressive spring - 80kg-130kg

Weight for 228mm travel fork: (compatible with 19“/21” inches)

• 45lbs spring -  ≤100kg
• 55lbs spring - 100kg-130kg

FEATURES:

• Center Distance: 750-800mm
• Main Piston Travel: 203-228mm
• Tube Diameter: ∅37mm
• Caliper Mount Spacing: 99.5mm
• Disc Brake Size: ∅220mm (Upgradeable)
• Suitable For: Electric Dirt Bikes, Downhill Bikes
• Damping System: Inverted Oil-Spring
• Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
• Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
• Spring Wire: 55CRSI
• MAX Triple Clamp: CNC Precision Machined
